The terms parcel scale and freight scale are used interchangeably in some contexts and treated as entirely different categories in others. The confusion costs businesses money — either by buying a parcel scale that cannot handle freight applications, or by over-specifying a heavy-duty freight scale for an operation that only ships small packages. The distinction between the two comes down to one primary factor: the weight threshold that separates parcel shipments from freight shipments. Everything else — capacity, platform size, workflow integration, and cost — follows from that boundary. This article explains where that line is, what each scale type is built to do, and how to identify which one your operation actually needs.
Table of Contents
The Weight Line That Separates Parcel from Freight
The boundary between parcel and freight is not arbitrary. Every major US carrier defines it by weight and size. As confirmed by UPS and FedEx, packages exceeding 150 lb move from parcel services to freight services, and the pricing structure, documentation, and handling change completely at that threshold. USPS draws its own line at 70 lb for standard parcel services.
This threshold matters for scale selection because:
- A parcel scale is designed and calibrated for packages at or below 150 lb — the upper boundary of standard carrier parcel services.
- A freight scale is designed for loads above 150 lb — including pallets, crates, and consolidated freight — where LTL (Less Than Truckload) carriers take over from UPS and FedEx ground services.
If your operation ships exclusively below 150 lb, a parcel scale is the correct tool. If your operation ships above 150 lb — even occasionally — you need a freight scale for those shipments. If your operation does both, you need both, or a single floor scale with sufficient capacity to cover the full range.

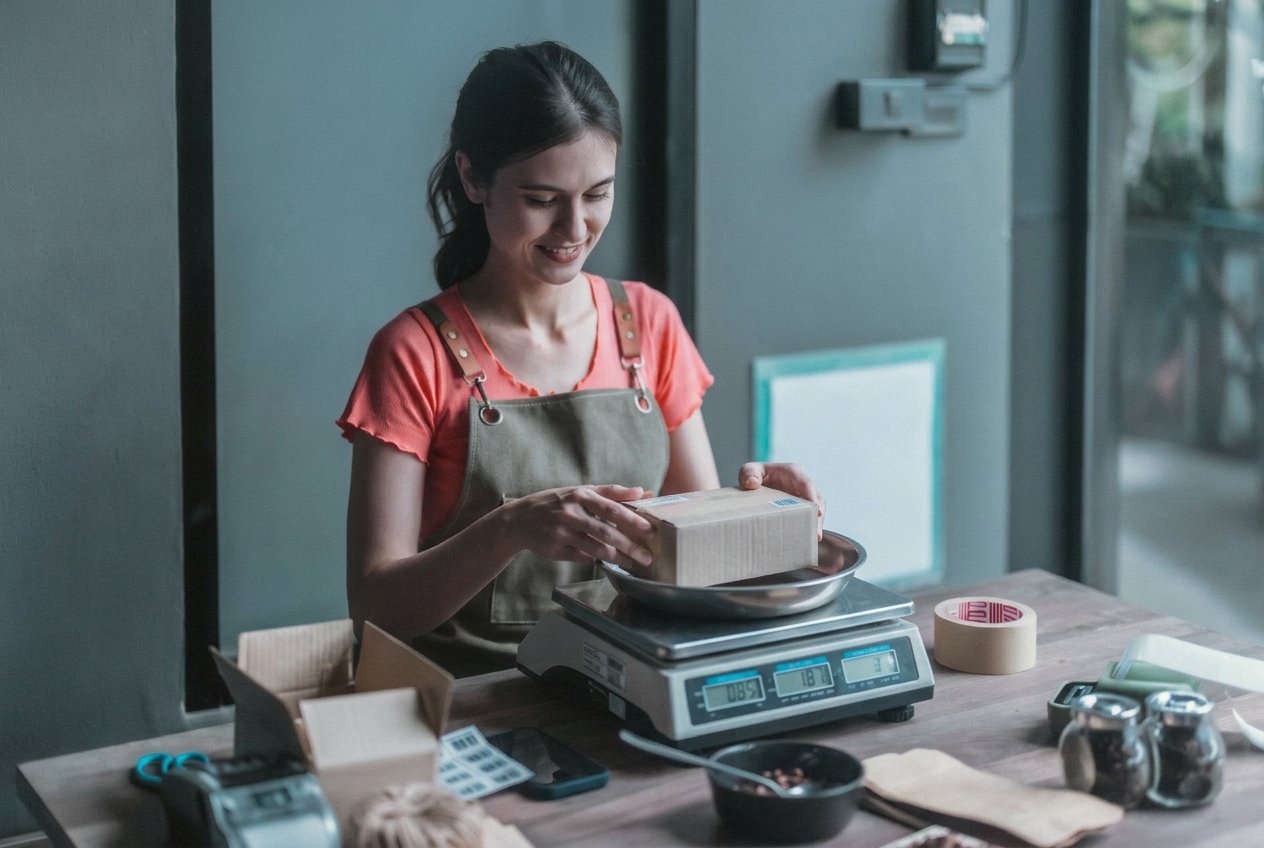

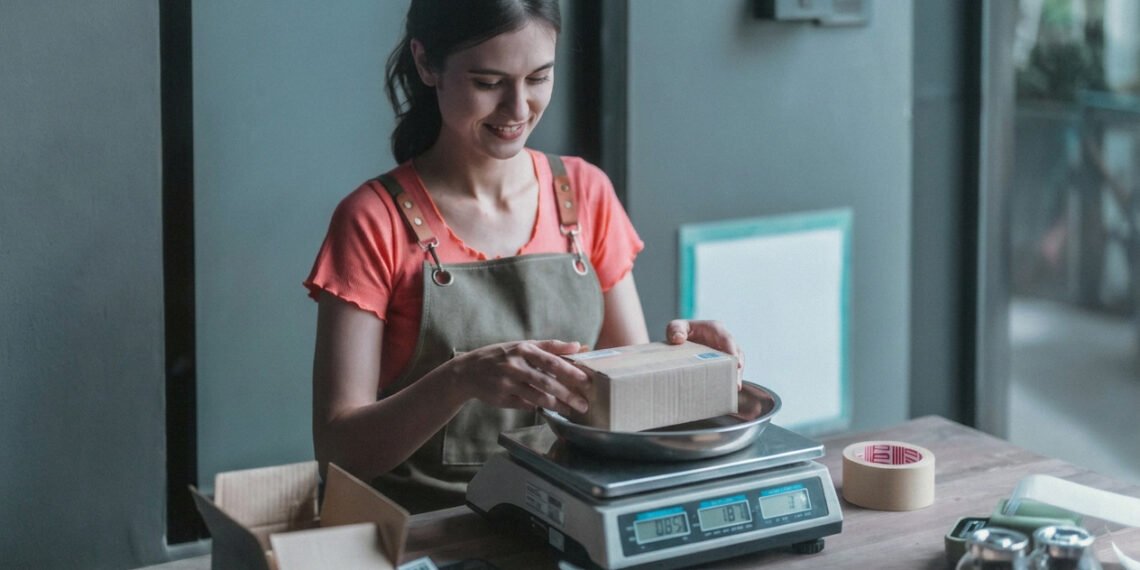

What a Parcel Scale Is Built For
A parcel scale is a bench-top or compact platform weighing instrument designed for individual packages handled by UPS, FedEx, USPS, and DHL. Its defining characteristics are:
Capacity: 35 lb to 300 lb, with 150 lb being the most common upper limit for standard parcel applications.
Readability: 0.1 oz for USPS applications; 0.1 lb for UPS and FedEx ground. The fine readability reflects the fact that parcel carriers bill to the nearest ounce or pound, and small differences in declared weight translate directly into billing differences.
Platform size: Typically 12″ × 14″ to 18″ × 24″. The platform is sized for boxes and packages that can be lifted by hand. Any package that overhangs the platform edge produces an incomplete reading — the overhanging portion is not weighed.
Software connectivity: Parcel scales connect to shipping software — UPS WorldShip, FedEx Ship Manager, ShipStation — via USB or Bluetooth. The weight feeds directly into the label being generated, eliminating manual entry.
Workflow position: The scale sits on a packing bench. The operator lifts the package, places it on the platform, waits for the reading to stabilize, and the weight is captured automatically by the connected software.
Best suited for: E-commerce sellers, retail shipping counters, corporate mailrooms, and any fulfillment operation shipping individual consumer packages via major parcel carriers.

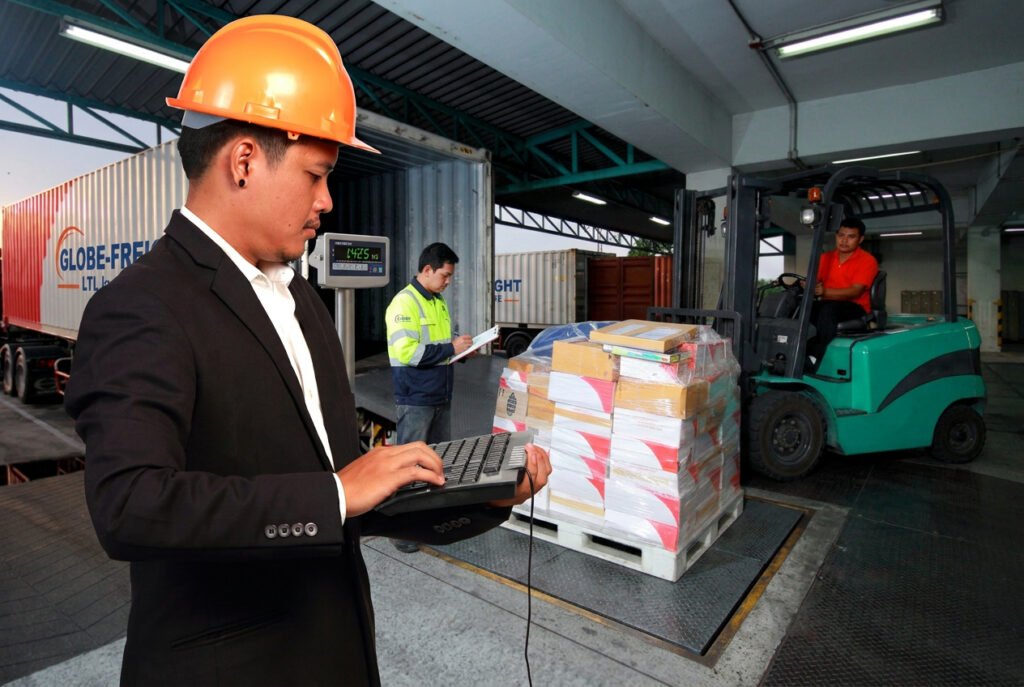

What a Freight Scale Is Built For
A freight scale is a floor-level or industrial platform weighing instrument designed for shipments that exceed the parcel carrier threshold — loads that move via LTL freight carriers such as Old Dominion, XPO Logistics, Saia, and ABF Freight.
Capacity: 500 lb to 10,000 lb or more. The capacity reflects the reality that a loaded pallet typically weighs 1,000 lb to 2,500 lb, and full freight loads can reach the maximum LTL threshold of approximately 10,000 lb.
Readability: 0.5 lb to 1 lb. LTL freight carriers bill by the pound, and fine ounce-level readability adds cost without adding commercial value at freight weights.
Platform size: 4 ft × 4 ft to 5 ft × 7 ft or larger. The platform must accommodate a full standard pallet — 48″ × 40″ — with all four corners of the pallet within the weighing surface. A pallet with any leg off the platform produces an incorrect weight reading.
Workflow position: The scale sits at floor level, or very close to it, with approach ramps if needed. Pallets are rolled, slid, or forked onto the platform — they are not lifted by hand.
LTL freight class connection: For LTL shipments, weight is not just a billing input — it determines freight class. Freight class is calculated using density (weight per cubic foot) under the National Motor Freight Classification (NMFC) system. An inaccurate freight weight produces an incorrect density calculation, which assigns the wrong freight class, which triggers a reclassification adjustment at delivery. These adjustments include both the weight difference and a reclassification fee — significantly more expensive than a standard parcel overcharge.
Best suited for: Warehouses, manufacturers, distributors, and any operation shipping palletized freight via LTL carriers where the declared weight determines both the freight bill and the freight class.
The Gray Zone: 150 lb to 300 lb
The most common source of confusion sits between 150 lb and 300 lb — the range where a shipment is too heavy for standard parcel service but may not yet justify full LTL freight handling.
In this range, several options exist:
- Heavy-duty parcel bench scales rated to 200–300 lb handle this range at bench level and connect to shipping software in the same way a standard parcel scale does.
- Small floor scales rated to 500 lb provide floor-level access for packages too heavy to lift onto a bench, at a lower cost than a full pallet-capacity freight scale.
- UPS and FedEx heavyweight services accept individual packages up to 150 lb on standard ground services, and some freight services accept individual items up to 2,000 lb — but at freight pricing.
If your operation regularly ships in the 150–300 lb range, a floor scale with 500 lb capacity sits in the right position — it handles this gray zone without over-specifying a full pallet freight scale.
Side-by-Side Comparison
| Specification | Parcel Scale | Freight Scale |
|---|---|---|
| Typical capacity | 35–300 lb | 500–10,000 lb |
| Readability | 0.1 oz – 0.1 lb | 0.5–1 lb |
| Platform size | 12″×14″ to 18″×24″ | 4′×4′ to 5′×7′ |
| Platform position | Bench top | Floor level |
| Loading method | Lifted by hand | Rolled or forked |
| Software connectivity | USB / Bluetooth | USB / RS-232 |
| Primary carriers | UPS, FedEx, USPS, DHL | Old Dominion, XPO, Saia, ABF |
| LTL freight class impact | No | Yes |
| Typical price range | $150–$1,500 | $800–$5,000+ |
How to Decide Which One You Need
Answer three questions in order.
1. What is the weight of your heaviest regular shipment? If it is consistently below 150 lb, a parcel scale handles your operation. If it regularly exceeds 150 lb, you need a freight scale for those shipments. If your shipments span both ranges, you need both — or a single floor scale with enough capacity to cover the full range.
2. Do your shipments move via parcel carriers or LTL freight carriers? If your carrier is UPS, FedEx, or USPS, you are shipping parcels, and a parcel scale is the correct tool. If your carrier is an LTL freight carrier, you are shipping freight, and freight class accuracy matters — a freight scale is required. If you use both, you need both scale types or a shared floor scale.
3. Does freight class affect your billing? If you ship LTL freight, the freight class directly determines your rate. An inaccurate weight on a freight scale produces an inaccurate density calculation, the wrong freight class, and a reclassification adjustment at delivery. Accuracy at freight weights is a commercial requirement, not a preference.
For a complete guide to specifying the right scale once you have answered these questions, see our shipping scale buying guide. For operations shipping LTL freight specifically, our pallet scale buying guide covers the full specification process for freight weighing applications.
FAQs
What is the difference between a parcel scale and a freight scale?
A parcel scale is designed for individual packages shipped via UPS, FedEx, USPS, or DHL — typically up to 150 lb — with a bench-top platform design and direct USB software connectivity. A freight scale is designed for heavier loads shipped via LTL freight carriers — typically 500 lb to 10,000 lb — with floor-level platform access sized for full pallets.
What weight separates parcel shipping from freight shipping?
The primary threshold is 150 lb. UPS and FedEx classify packages above 150 lb as freight, moving them to freight services rather than standard ground parcel services. USPS draws its standard parcel limit at 70 lb. Anything above these thresholds is handled by freight carriers and requires a freight scale.
Can I use a parcel scale for LTL freight shipments?
No. A standard parcel scale does not have the capacity, platform size, or floor-level access required to weigh a loaded pallet. Using a parcel scale reading for an LTL freight shipment would require lifting the pallet load in sections, which produces inaccurate results and does not satisfy carrier documentation requirements.
Does freight scale accuracy affect freight class?
Yes. LTL freight class is calculated using density — weight divided by cubic volume. An inaccurate weight produces an incorrect density figure, which assigns the wrong freight class and triggers a reclassification adjustment at delivery. Accurate freight scale readings are essential for correct freight class assignment.
Do I need both a parcel scale and a freight scale?
If your operation regularly ships both packages under 150 lb via parcel carriers and palletized freight via LTL carriers, you need both — or a single floor scale with enough capacity to cover both ranges. A floor scale rated to 500–1,000 lb can handle the upper range of parcel weights and lighter freight loads from the same station.
Conclusion
The choice between a parcel scale and a freight scale is determined by the weight threshold that separates your shipments — not by preference or budget. Below 150 lb, a parcel scale is the correct tool. Above 150 lb, you need freight scale capacity, floor-level platform access, and the ability to produce accurate weights for freight class calculation. The 150–300 lb gray zone is best served by a heavy-duty floor scale that bridges both applications without over-specifying a full pallet freight platform. Get the threshold right first, and the scale selection follows directly from there.
