The two most common laboratory balances sit on benches in labs across the world — one open, accessible, and fast; the other enclosed, sensitive, and precise. The top loading balance and the analytical balance both measure mass. Both are digital. Both are found in chemistry, pharmaceutical, food science, and teaching laboratories. The decision between them determines whether your measurements are fit for purpose — or whether you are either overpaying for sensitivity you do not need, or under-specifying an instrument that cannot meet your method’s requirements.
This article covers the differences that actually matter for laboratory selection — readability, capacity, draft shield, environmental sensitivity, cost, and regulatory application — and gives you the decision framework to identify the right instrument for your specific work.
Table of Contents
What a Top Loading Balance Is
A top loading balance is a general-purpose laboratory weighing instrument with an open weighing pan positioned on top of the balance housing — accessible from above without opening any doors or panels. The design prioritizes accessibility and throughput over ultimate sensitivity.
As confirmed by Cole-Parmer, top loading balances — also commonly called precision balances — are often more robust and less sensitive to environmental factors, making them a practical choice for routine weighing needs where the highest level of precision is not required. They are commonly found in educational settings, quality control labs, and general weighing applications.
Key characteristics:
- Open pan design — no enclosure or draft shield required
- Readability of 0.001 g to 0.1 g (1 mg to 100 mg)
- Capacity typically 200 g to 32 kg, depending on model
- Faster stabilization time than analytical balances
- Less sensitive to vibration, drafts, and temperature fluctuation
- Lower purchase cost than analytical balances of equivalent capacity
The term “top loading balance” describes the physical design — the pan sits on top of the balance housing and is loaded from above. The term “precision balance” describes the same instrument category in technical and regulatory contexts. Both terms refer to the same class of instrument. If you have seen both terms and wondered whether they refer to different instruments, they do not — they are the same balance described by different naming conventions used by different audiences.
What an Analytical Balance Is
An analytical balance is a high-precision laboratory weighing instrument designed to measure mass to four decimal places in grams — a readability of 0.1 mg (0.0001 g). It is enclosed in a glass or acrylic draft shield that protects the weighing pan from air currents that would otherwise affect readings at this level of sensitivity.
As Lab Equipment Co confirms, an analytical balance provides a much higher degree of precision with readability typically ranging from 0.1 mg to 0.01 mg, and its fine sensitivity requires stable environmental conditions — controlled temperature, low vibration, and minimal airflow — to ensure reliable readings.
Key characteristics:
- Enclosed draft shield — doors must be closed during measurement
- Readability of 0.1 mg (0.0001 g) — four decimal places in grams
- Capacity typically 60 g to 520 g
- Uses electromagnetic force compensation (EMFC) technology
- Highly sensitive to vibration, drafts, and temperature fluctuation
- Requires an anti-vibration table in most laboratory environments
- Higher purchase cost than top loading balances
The draft shield is the most visible physical difference between the two instruments. If a balance in your laboratory has an enclosed glass or acrylic chamber surrounding the weighing pan, it is an analytical balance operating at a sensitivity level where air movement matters. If the pan is open and accessible without opening any doors, it is a top loading balance.
The Single Most Important Difference: Readability
The defining difference between a top loading balance and an analytical balance is readability — and the gap is significant.
A top loading balance reads to 0.001 g (1 mg) at its finest — three decimal places in grams. Most routine lab top loading balances read to 0.01 g or 0.1 g.
An analytical balance reads to 0.0001 g (0.1 mg) — four decimal places in grams. This is ten times finer than the finest top loading balance, and 1,000 times finer than a standard 0.1 g top loader.
As Worldoftest confirms, analytical balances provide high precision of 0.1 mg or better for critical analysis, while top loading balances offer faster stabilization and higher capacity for routine tasks.
Why this matters in practice: If your method requires you to weigh 25 mg of a standard to prepare a reference solution, and the tolerance on that weight is ±0.1 mg, a top loading balance with 1 mg readability cannot serve this application. The readability itself is ten times coarser than the required tolerance — the balance cannot detect whether you have added too much or too little.
The same 25 mg weighing on an analytical balance with 0.1 mg readability produces a result that can be verified to within the required tolerance. The instrument matches the method requirement.

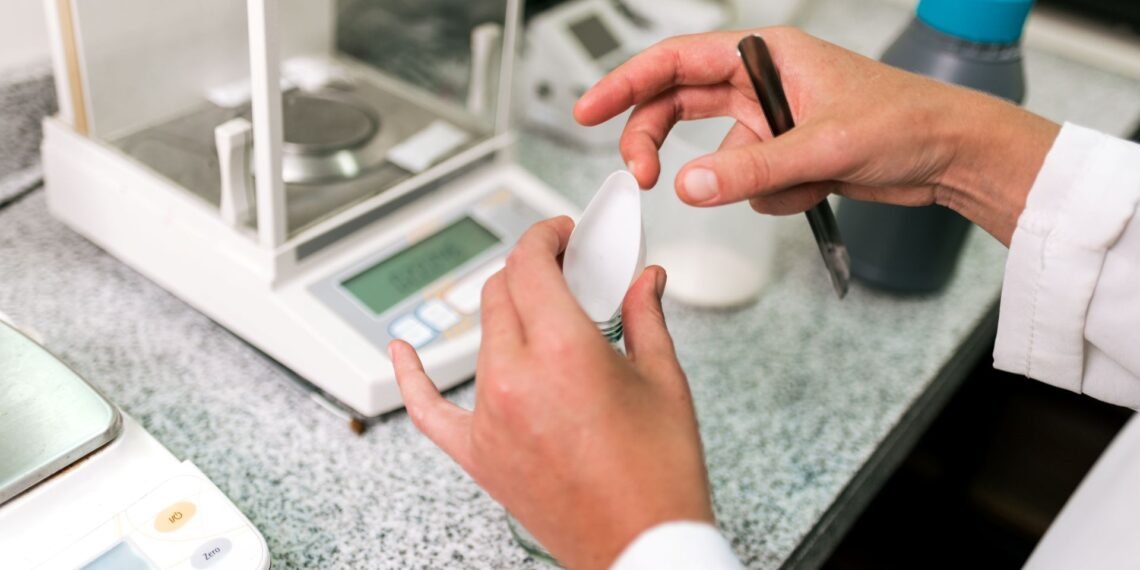

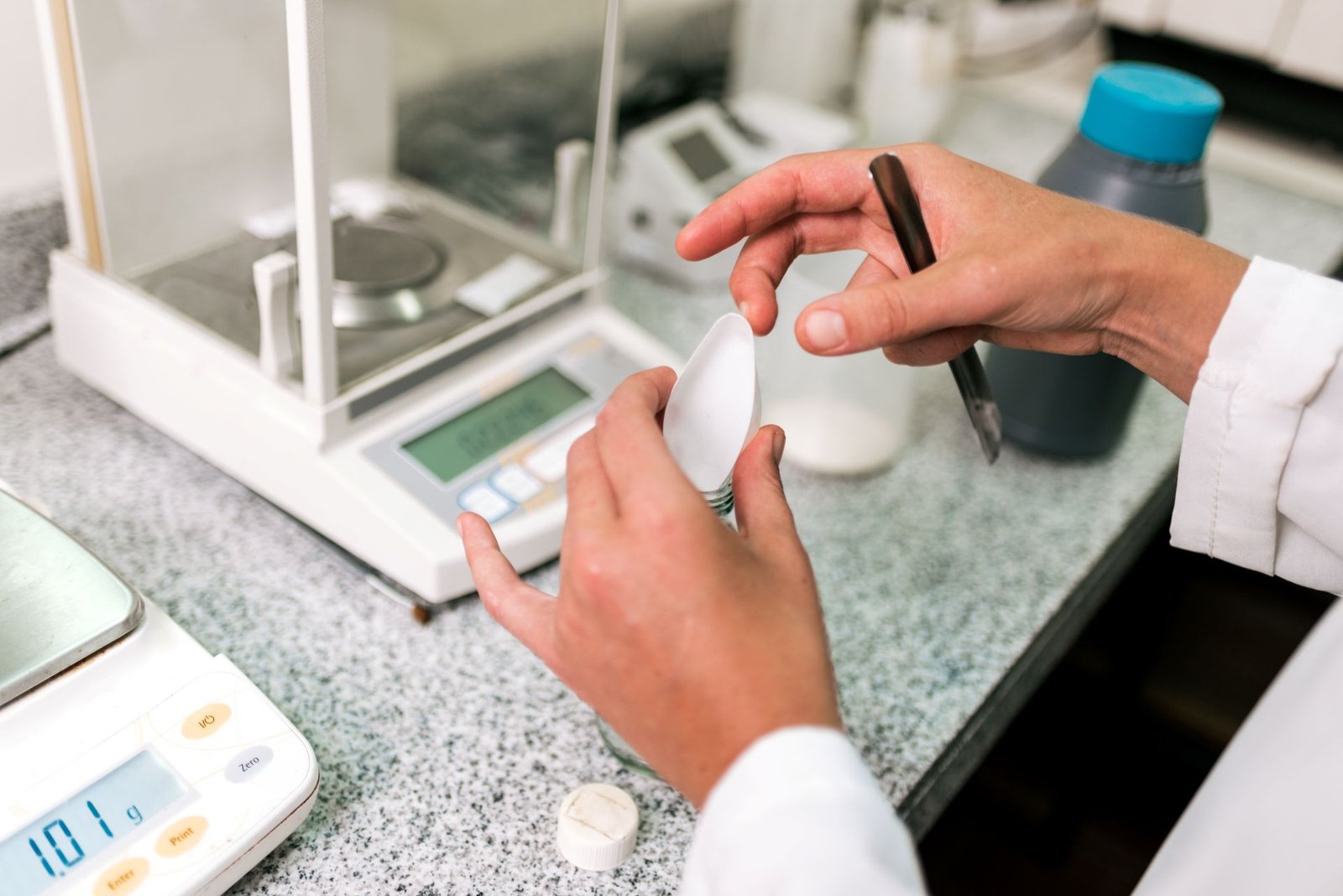

Side-by-Side Comparison
| Specification | Top Loading Balance | Analytical Balance |
|---|---|---|
| Readability | 0.001–0.1 g (1–100 mg) | 0.1 mg (0.0001 g) |
| Typical capacity | 200 g – 32 kg | 60–520 g |
| Draft shield | Not required | Standard — always enclosed |
| Pan access | Open — accessible from above | Through side or front doors |
| Weighing mechanism | Strain gauge (most models) | Electromagnetic force compensation |
| Environmental sensitivity | Moderate | High |
| Stabilization time | 1–3 seconds | 3–8 seconds |
| Typical price range | $300–$3,000 | $1,500–$8,000+ |
| Anti-vibration table | Not required | Recommended |
| Warm-up time | 15–30 minutes | 30–60 minutes |
The Draft Shield: Why Analytical Balances Have One and Top Loading Balances Do Not
The draft shield on an analytical balance is not an accessory or a product design choice — it is a physical necessity at 0.1 mg readability.
At this sensitivity level, the force exerted by a gentle air current from an HVAC vent across the room is large enough to shift the reading by several tenths of a milligram. A researcher walking past the balance creates enough air movement to affect the measurement. The draft shield encloses the weighing pan in a still air chamber, eliminating the air current effect.
A top loading balance at 0.001 g (1 mg) readability is ten times less sensitive. The force that an air current exerts on the weighing pan is the same in both cases — but at 1 mg readability, that force is negligible relative to the smallest increment the balance can display. The draft shield adds no measurement value at this readability level.
As American Scale Supply confirms, analytical models require a draft shield to protect the weighing pan from air currents, while top loading balances do not because their sensitivity level makes air movement effects negligible relative to their readability.
The practical consequence for lab layout is significant. A top loading balance can be placed on a standard laboratory bench near an HVAC vent and produce reliable results. An analytical balance in the same location will produce fluctuating, unreliable readings. For the complete guide to environmental requirements for analytical balances, see our article on what affects lab balance accuracy.
The Capacity Difference — and Why It Matters
Analytical balances top out at 520 g on most models. Top loading balances start at 200 g and go up to 32 kg or higher on platform precision balance models.
This capacity gap is a direct consequence of the measurement technology. Electromagnetic force compensation — the mechanism that gives analytical balances their 0.1 mg readability — operates accurately only across a limited range. Extending that range while maintaining the same resolution requires exponentially more complex engineering and cost.
For most laboratory applications, the analytical balance’s 200–520 g capacity range is entirely sufficient — chemical samples are typically measured in milligram to gram quantities, and tare vessels rarely exceed 200 g. Where the limitation matters is in applications where heavy containers must be used.
Example: A 500 mL beaker weighs approximately 120–140 g. If you need to weigh a 300 g sample in that beaker, the combined load is 420–440 g — approaching the upper limit of a 520 g analytical balance. If your routine work regularly involves samples above 300 g in standard glassware, a top loading balance at 1 mg readability — if the method’s tolerance permits it — is the more practical instrument.
For a detailed guide to calculating the capacity you actually need and ensuring the instrument you select has sufficient headroom above your routine loads, see our analytical balance buying guide.
Applications: Which Instrument Belongs Where
Use a Top Loading Balance For:

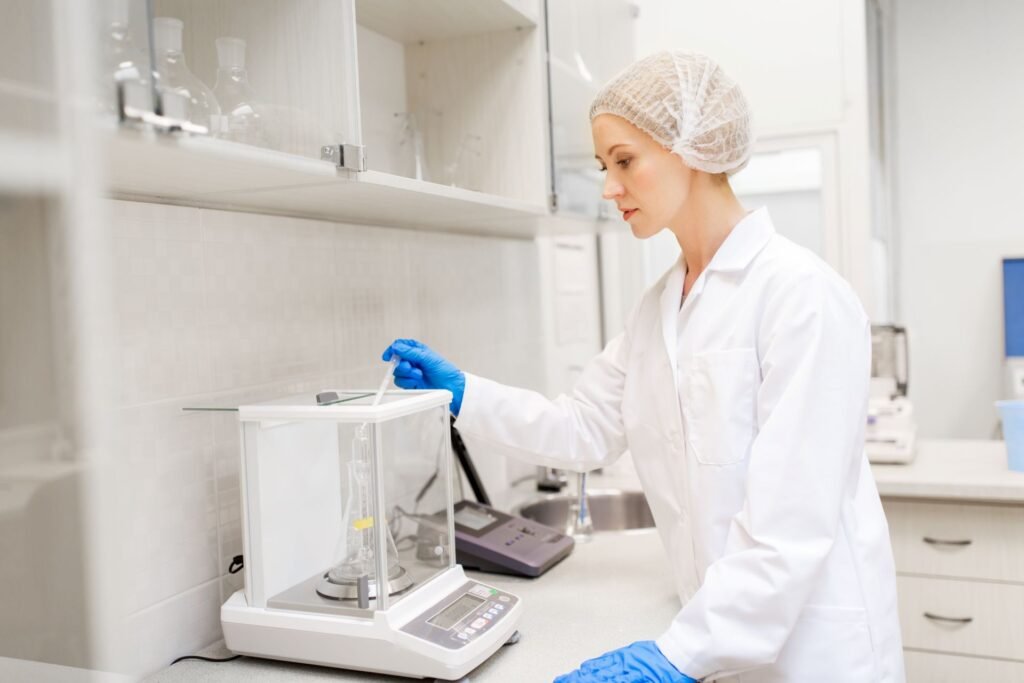

Routine solution preparation. Preparing buffers, reagents, and general solutions at gram-level concentrations. When a method calls for weighing 5.000 g of sodium chloride for a 0.1 M solution, the tolerance on that weight is in the range of tens of milligrams, well within the capability of a 1 mg top loading balance, and entirely unnecessary to perform on an analytical balance.
Bulk reagent weighing. Weighing raw materials, bulk chemicals, and large sample portions. The higher capacity of a top loading balance handles these applications without the capacity constraints of an analytical balance.
Teaching laboratory work. As Stuccler confirms, top loading balances are cost-effective and durable for educational settings where ultra-high precision is not required. A teaching lab that needs 20 balances for a general chemistry course equips them with top loading balances, not analytical balances.
Pre-weighing samples for analytical processing. When a sample will be subsequently processed before the final analytical measurement, the weighing step does not require analytical precision. A soil sample is weighed before acid digestion, and ICP analysis does not need 0.1 mg precision at the pre-weigh stage.
Industrial quality control at gram tolerances. Production QC applications where the specification tolerance is in the gram range. A food production line checking that packages contain 500 g ± 2 g does not require an analytical balance.
Use an Analytical Balance For:
Quantitative chemical analysis. Preparing primary and secondary standards, where concentration accuracy depends on weighing accuracy to the fourth decimal place. A primary standard prepared on a top loading balance produces a reference solution with concentration uncertainty that propagates through every subsequent analysis.

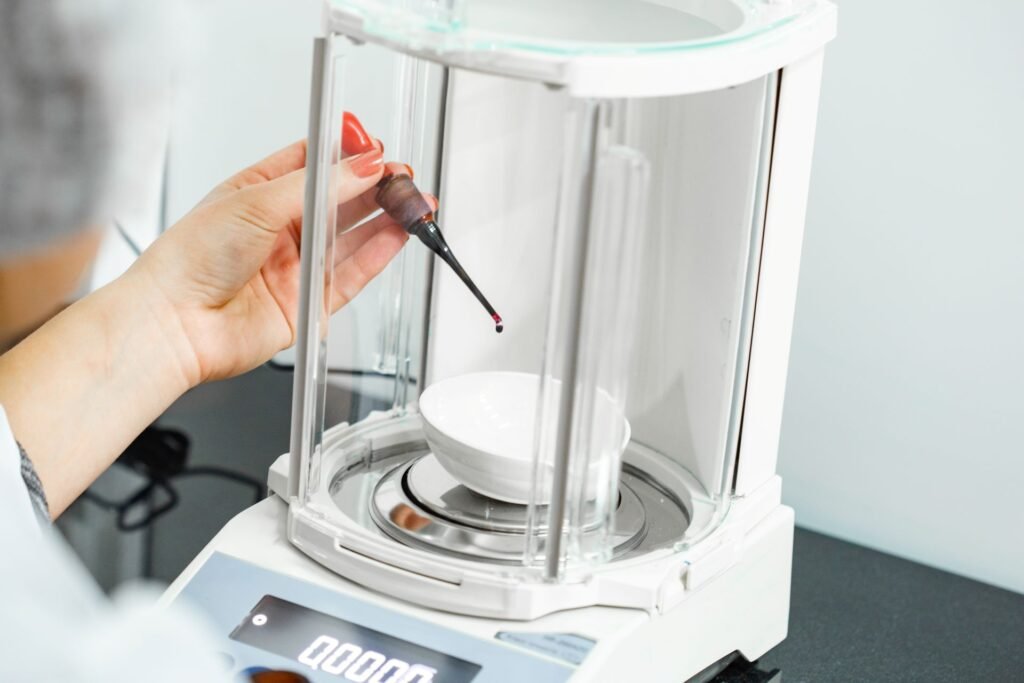

Pharmaceutical ingredient weighing. Active pharmaceutical ingredient (API) and reference standard weighing where quantities are in the milligram range and regulatory frameworks specify minimum balance performance. As confirmed by USP Chapter 41, a balance used to weigh pharmaceutical materials must demonstrate that its minimum weight is below the smallest quantity required by the method — a requirement that top loading balances generally cannot satisfy for API weights below 1–2 g.
Gravimetric analysis. Any method where mass measurements are the primary analytical result — filter weighing, residue determination, and content uniformity testing. The accuracy of the final result is limited by the accuracy of the weighing step.
Pipette calibration verification. Verifying that a pipette delivers its stated volume by weighing the water dispensed. A 100 µL pipette delivers approximately 0.1 g of water — weighing this accurately requires 0.1 mg readability.
Any method that specifies “accurately weigh” in a pharmacopeial or regulatory context. This phrase, used in USP, EP, and JP methods, triggers the requirements of USP Chapter 41, which almost always requires analytical balance performance.
The Overlap Zone: When Either Could Work
Between approximately 100 mg and 500 mg minimum sample weight, both instrument types have models that could technically serve the application. The decision in this overlap zone depends on three factors.
Regulatory framework. If the application falls under GMP, GLP, or USP Chapter 41, the balance must demonstrate through a repeatability test that its minimum weight is below the smallest quantity the method requires, with a safety factor of 2. An analytical balance almost always provides a more comfortable margin for milligram-range applications than a top loading balance at 1 mg readability. For the complete USP Chapter 41 minimum weight guide, see our article on pharmaceutical lab weighing and USP standards.
Sample capacity. If routine samples and containers combined regularly exceed 500 g, an analytical balance cannot serve the application at its standard capacity. A top loading balance at 1 mg readability with 2 kg capacity handles this range, where an analytical balance cannot.
Cost and environmental overhead. An analytical balance requires more environmental control, more frequent performance verification, longer warm-up times, and an anti-vibration table. For work that genuinely only requires 1 mg readability, the top loading balance eliminates all of this overhead without sacrificing any measurement performance the application actually needs.
What “Precision Balance” and “Top Loading Balance” Both Mean
Laboratory professionals, equipment suppliers, and regulatory documents use these terms differently. Understanding which term applies in which context prevents confusion when reading specifications, SOPs, or equipment lists.
“Top loading balance” is a design description — it describes where the pan is and how the instrument is loaded. It is the term most commonly used in general science education, general laboratory settings, and by people who are not primarily metrologists.
“Precision balance” is a performance description — it describes the readability class of the instrument (0.001 g to 0.1 g) without describing its physical design. It is the term used in technical specifications, calibration documentation, and regulatory frameworks. As Ossila confirms, both terms refer to the same category of instrument.
In practice, a top loading balance and a precision balance are the same instrument — the two terms reflect different naming conventions used by different audiences for the same product. For the detailed technical comparison of precision balance specifications against analytical balance specifications, see our article on precision balance vs analytical balance.
FAQs
What is the difference between a top loading balance and an analytical balance?
A top loading balance has an open pan accessible from above, reads to 0.001–0.1 g, and handles higher capacities up to several kilograms. An analytical balance has an enclosed draft shield, reads to 0.0001 g (0.1 mg), and handles capacities up to 520 g. Analytical balances are used for high-precision quantitative work. Top loading balances are used for routine laboratory weighing where milligram-level precision is sufficient.
Is a top loading balance the same as a precision balance?
Yes. “Top loading balance” describes the physical design — pan on top, accessible from above. “Precision balance” describes the performance class — readability of 0.001 g to 0.1 g. Both terms are used for the same category of laboratory weighing instrument. The terminology varies by industry, application context, and the naming conventions used by different balance manufacturers.
Can a top loading balance replace an analytical balance?
Not for applications requiring 0.1 mg readability. A top loading balance at its finest (1 mg readability) is ten times coarser than an analytical balance. For pharmaceutical weighing, primary standard preparation, and gravimetric analysis where milligram-level precision matters, only an analytical balance satisfies the requirement.
Why does an analytical balance need a draft shield, but a top loading balance does not?
At 0.1 mg readability, air currents exert a measurable force on the weighing pan. A draft shield eliminates this effect by enclosing the pan in still air. At the 1 mg readability of a top loading balance, the same air current force is negligible relative to the smallest readable increment, so a draft shield adds no measurement value.
Which balance is better for pharmaceutical work?
For API weighing at milligram quantities, reference standard preparation, and content uniformity testing, an analytical balance with 0.1 mg readability is required. USP Chapter 41 specifies minimum balance performance requirements that top loading balances generally cannot satisfy for pharmaceutical quantities below 1–2 g. For bulk excipient weighing at gram quantities, a top loading balance is the appropriate, more practical instrument.
What capacity top loading balance do I need?
Select a capacity that accommodates your largest routine sample plus the tare weight of the container, with a 20% safety margin. Top loading balances are available from 200 g through to 32 kg. For most routine laboratory solution preparation, a 2–6 kg capacity at 0.01 g readability covers the majority of applications comfortably.
Conclusion
The top loading balance and the analytical balance are both precision instruments — the distinction is in the degree of precision, and the environment each requires to achieve it. A top loading balance is faster, more robust, higher-capacity, and lower-cost. An analytical balance is more sensitive, more demanding of its environment, and essential for any application where mass measurement accuracy determines the validity of the result.
The right choice follows from one question: what is the smallest mass difference your method requires you to detect reliably? If the answer is 1 mg or above, a top loading balance serves the application. If the answer is 0.1 mg or below, an analytical balance is required. For complete guidance on selecting the specific analytical balance model for regulated laboratory environments, see our analytical balance buying guide.
